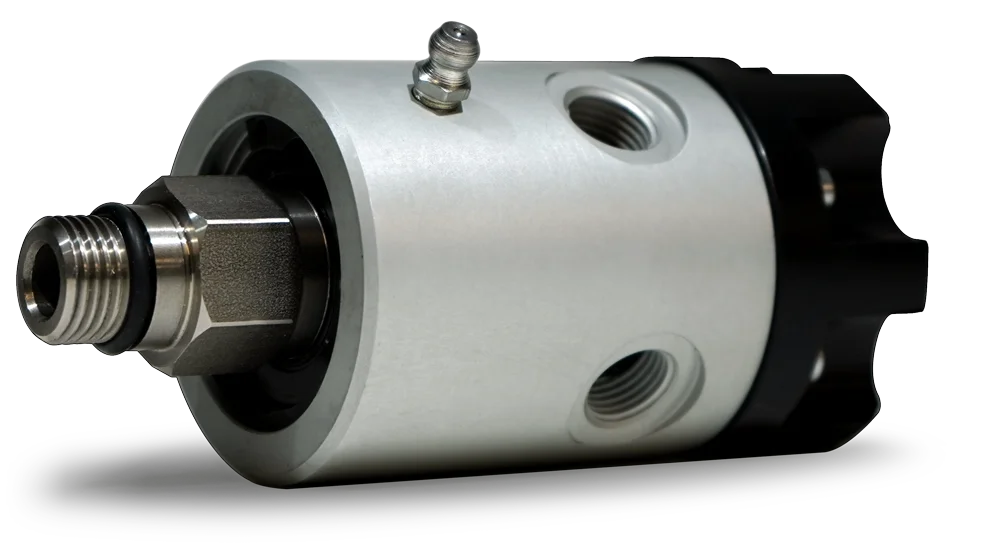

On-Off Series

Rotating union for dry rotation

The Girol On-Off Series has been designed for the passage of refrigerant fluids through the spindles of machine tools. This union can also operate without fluids passing (dry rotation) up to a high speed of 20,000 RPM. The fixed external part is made of anodized aluminum and the rotary part is made of nickel plated carbon steel.

0
MAX PRESS: BAR
0
T. MAX °C
0
VELOCITA' MAX RPM

ON-OFF Series

Rotating union for dry rotation

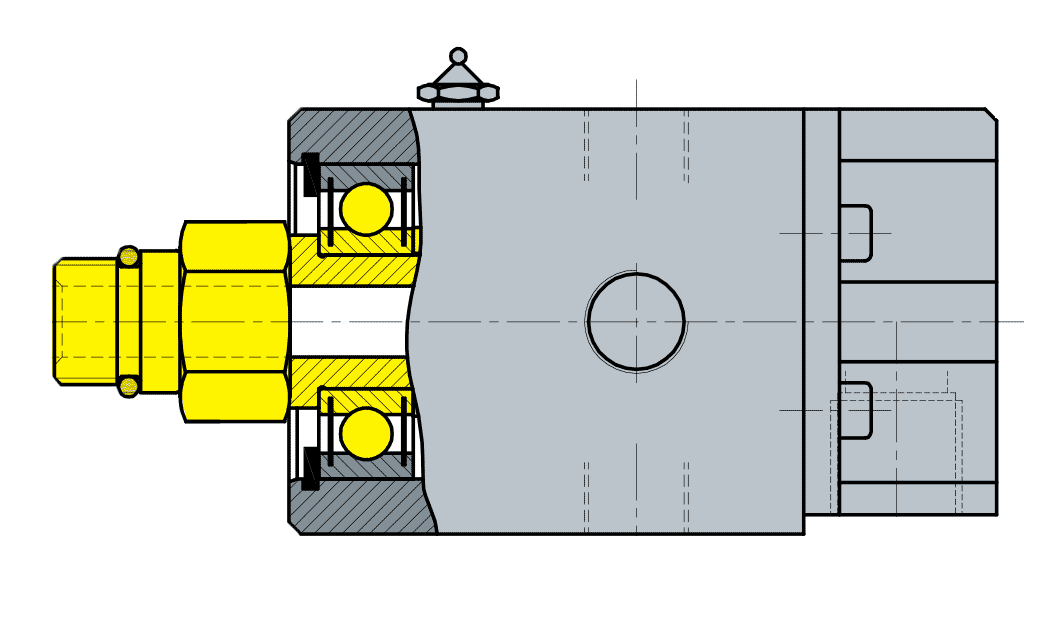

Girol's On-Off series - Technical design

Info

The Girol On-Off Series has been designed for the passage of refrigerant fluids through the spindles of machine tools. This union can also operate without fluids passing (dry rotation) up to a high speed of 20,000 RPM. The fixed external part is made of anodized aluminum and the rotary part is made of nickel plated carbon steel.

Main features

1) high speed ball bearings

2) Designed for rotating without fluids

3) Housing in alluminium anodizing

4) System for reserve the bearing

5) Silicon carbide seal
