HD Series

Rotating union two indipendent directions

The Girol HD series is designed for mounting in a coil machine. However, it is a product that can be used in a variety of applications, whenever a rotary union is necessary with two directions and high pressure capability up to 350 Bars. The alignment and precision are guaranteed by the use of a ball bearing. The external housing is made of aluminum while the internal rotor is made from nickel-plated carbon steel.

0
MAX PRESS: BAR
0
T. MAX °C
0
VELOCITA' MAX RPM

HD Series

Rotating union two indipendent directions

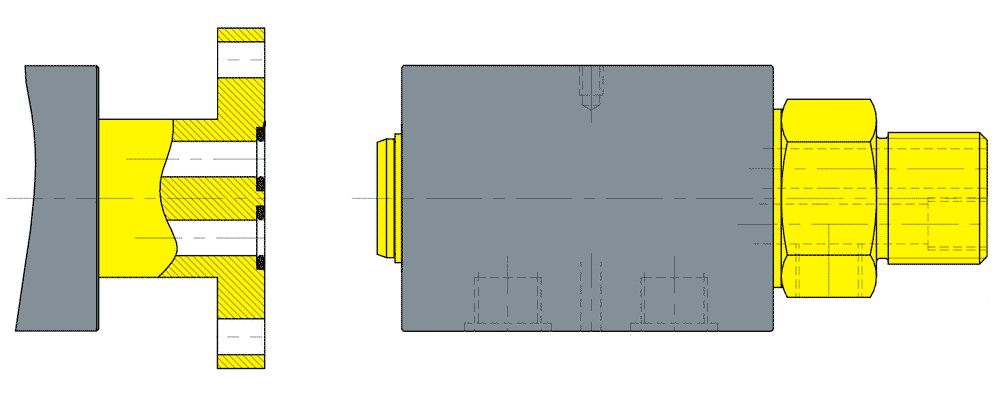

Girol's HD series - Technical design

Datasheet

Info

The Girol HD series is designed for mounting in a coil machine. However, it is a product that can be used in a variety of applications, whenever a rotary union is necessary with two directions and high pressure capability up to 350 Bars. The alignment and precision are guaranteed by the use of a ball bearing. The external housing is made of aluminum while the internal rotor is made from nickel-plated carbon steel.

Main features

1) Self supporting by two bearings  (2) Vent hole  (3) Shaft in steel chemical nickel plated  (4) Alluminium housing  (5) Size from ¼” to ½” gas

General assembling warnings

1) Pipe connection have always to be made with flexible hoses  (2) The plant pipings and the rotating cylindres must be absolutely cleaned from chips welding slags, dirtness and so on  (3) Avoid use with more than one max operatin data
